TL;DR: A free, actively-maintained Microsoft PowerShell module for Azure Local. Run it on any cluster node to get a tabbed HTML report with health checks, consistency comparisons across nodes, Azure connectivity validation, and crash-dump configuration — all your cluster diagnostics in one file.

What it solves

• Cluster-wide health snapshot in one report — system info, network, services, drivers, hotfixes, event logs, plus health checks and consistency comparisons between nodes.
• Connectivity sweep across every Azure endpoint your stamp needs to reach — registration, Arc, telemetry, OEM update sources.
• Distinguishing SSL inspection by a corporate proxy from CRL/OCSP endpoints that simply aren't reachable (different fix in each case).
• Crash dumps that aren't being captured because the kernel dump or page file is misconfigured.
• Pre-deployment validation of the same items before a stamp is built.

Install (30 seconds)

Install-Module AzStackHci.DiagnosticSettings -Scope AllUsers

PowerShell 5.1 minimum, run elevated. Supports both Windows PowerShell (Desktop) and PowerShell 7+ (Core). Released on a near-monthly cadence — refresh periodically.

Try this first

Two starting points depending on what you're investigating.

Cluster-wide health snapshot (the everyday command):

Get-AzStackHciOsConfigSettings -Scope Cluster

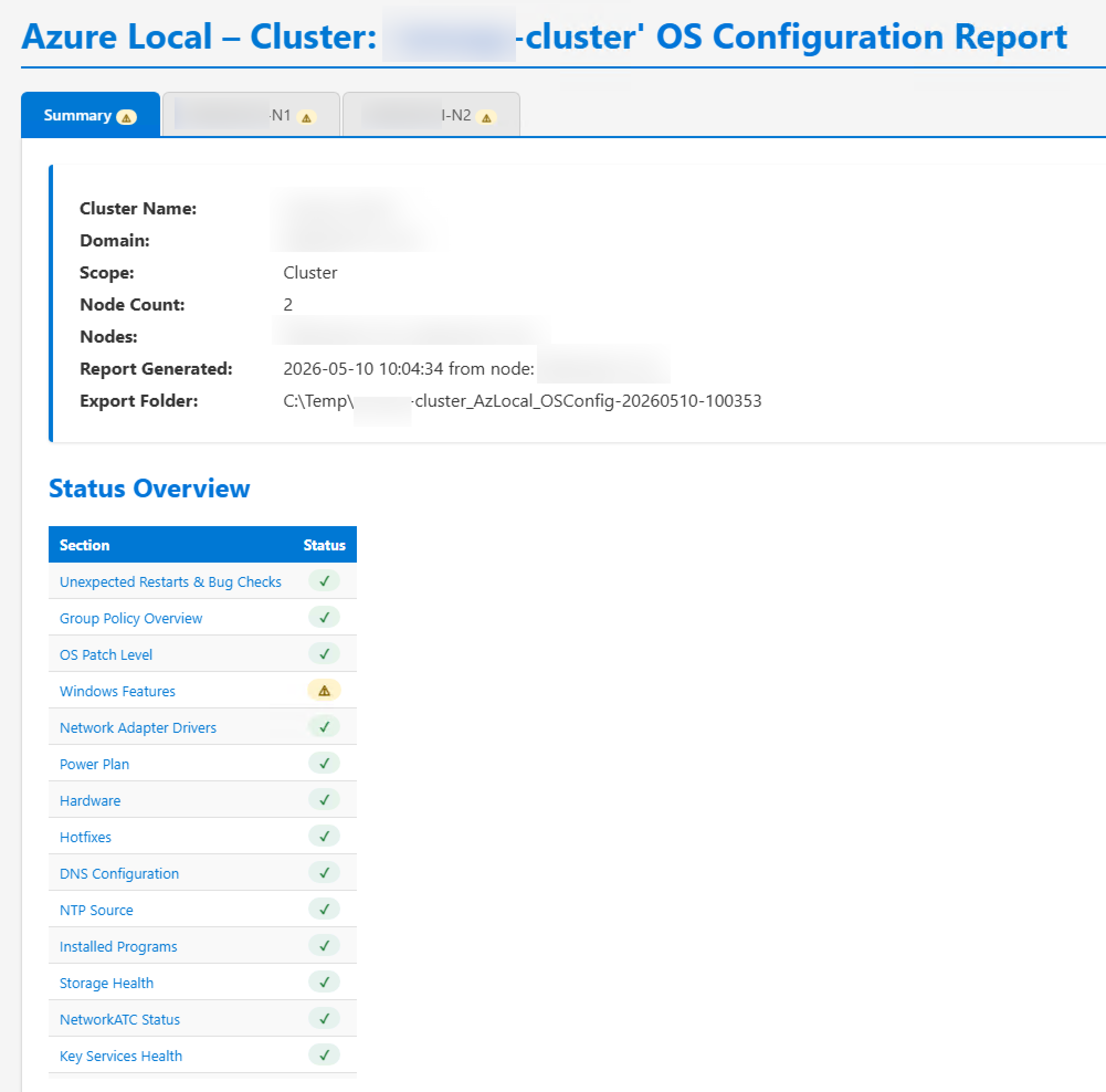

Collects OS configuration, network config, services, drivers, hotfixes, event logs, and more from every node in parallel via PSRemoting, then produces a tabbed HTML report with a Summary tab (health checks + consistency comparisons across nodes) and a detail tab per node.

Where to run it. Run on a clustered node — the cmdlet uses Get-Cluster with no arguments to discover the cluster, so it needs the local machine to be a cluster member. The HTML report writes to -ExportPath on the executing node (default C:\Temp\AzLocal_OSConfig with a date suffix). Since Azure Local nodes don't ship with a browser, copy the HTML off the node afterward to view it — easiest pattern is browsing from your workstation to \\<nodename>\C$\Temp\ over the admin share.

Connectivity sweep across required Azure endpoints:

Test-AzureLocalConnectivity -AzureRegion <your-region> -IncludeOEMUrls DataOn

Run this when registration is failing or you're seeing "can't reach Azure" errors. Generates an HTML report with pass/fail per URL, and as of v0.6.6 distinguishes CRL/OCSP-unreachable endpoints from SSL inspection (different remediation in each case). Discrepancies between nodes usually point to firewall or DNS scope issues.

In air-gapped environments, add -NoAutoUpdate so the cmdlet uses its bundled endpoint list instead of pulling the latest one from GitHub.

Common scenarios

Caveats

• PowerShell 5.1 minimum; works on PowerShell 7+ as well.
• Get-AzStackHciOsConfigSettings -Scope Cluster requires Failover Cluster Tools (RSAT) on the machine running the cmdlet, plus PSRemoting access to each node.
• Get-AzStackHciOsConfigSettings and similar cmdlets prompt at the end of the run asking whether to upload results to Microsoft (default is yes-at-prompt). Decline interactively or pass -UploadResults:$false to skip the prompt entirely.
• All Set-* cmdlets have a matching Restore-* and write a checksummed JSON backup to C:\ProgramData\AzStackHci.DiagnosticSettings\ before changing anything. Use -WhatIf to preview.
• For collecting a full evidence bundle (logs, dumps, multi-component captures), this isn't the right tool — use Microsoft.AzLocal.CSSTools instead. The two modules are complementary.

Canonical sources

• PowerShell Gallery: https://www.powershellgallery.com/packages/AzStackHci.DiagnosticSettings
• Project repo (shared with the official Azure Local Supportability TSG): https://github.com/Azure/AzureLocal-Supportability
• Test-AzureLocalConnectivity is documented in the TSG's Networking section.
